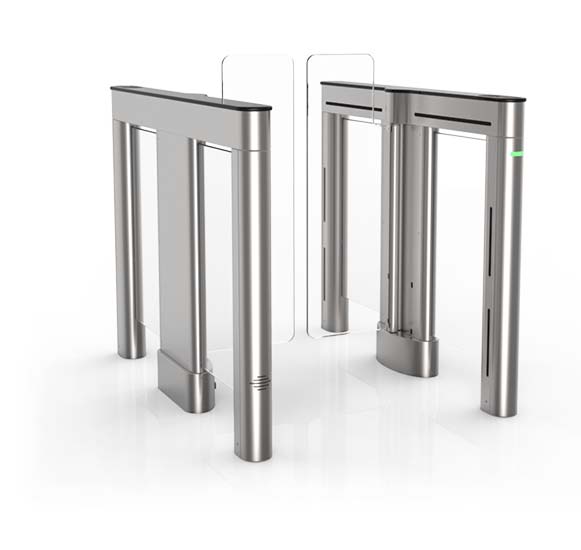

SU5000 Swinging Barrier Optical Turnstile
The SU5000 with bi-directional motorized swinging barriers is the culmination of many years of optical turnstile design and manufacturing experience.
The SU5000 is simply a beautiful product. Its rounded lines, contoured edges and liberal use of crystal clear materials create a very upscale look suitable for any premium lobby. With the industry’s slimmest cabinet design, the SU5000 slim size and very compact footprint saves floor space and allows use of optical turnstiles in areas where space is a premium.
The SU5000 swinging barrier optical turnstile provides bi-directional access control in conjunction with a facility access control system. To enter, users present a valid credential which opens the turnstile’s motorized barriers away from the user, allowing a single passage in the requested direction. If an unauthorized user attempts to tailgate on a valid entry, or attempts to enter without authorization, the integrated sensors recognize the illegal passage attempt and sound an alarm. The SU5000 has a number of operational modes and features that provide a superb combination of security, safety and high user throughput.
The SU5000 is an IP enabled device. Core turnstile settings are adjusted in the field using an included web application. Using a PC, tablet or smartphone, configurable features – such as audio sounds, motor settings, detection settings, tailgate settings and alarm timer settings – are set and changed over a TCP/IP network. For installations where turnstiles are not networked, configuration changes are easily made by plugging directly into the turnstile’s configuration port.
Key Features:
- Card in/card out; card in/free exit; either or both directions closed for use
- Superior unauthorized passage and unauthorized presence detection
- Motorized panels open quickly and smoothly away from the user
- Download configuration changes and custom audio sounds over a TCP/IP network
- Brushless closed loop DC drive system
- Software adjustable panel holding force and operating speed
- Multiple operation modes
- Designed for continued use and maintenance free performance
Simplified Integration.
Integrating the SU5000 optical turnstile into your facility is quick and easy. The SU5000 integrates with virtually any access control or visitor management system and accommodates a wide array of credential readers. Dedicated inputs for fire or life safety systems are provided and outputs are available to turn on cameras, lock interior doors and provide remote notification of alarm events. The result is a barrier optical turnstile that not only looks amazing but provides superior access control and visitor management at facilities worldwide.
Our GateKeeper Monitoring and Control software allows operational management of SU5000 optical turnstiles over a TCP/IP network. Among its many features, GateKeeper allows authorized personnel using a laptop, PC, tablet or similar device to change lane configurations and provide override activations or operating mode changes for special circumstances such as visitors and deliveries. Passage directions can also be changed (and individual turnstiles opened or closed) automatically at pre-defined times to increase passage flow or heighten security during busy or slow periods.
Key Features:
- Simplified integration to access control and visitor management systems
- Flexible credential reader attachment options allows use of existing readers familiar to users
- Dedicated input for fire/life safety systems
- Multiple inputs to allow access control systems to implement operating mode changes
- Multiple outputs available for integration with 3rd party systems and other devices
- TCP/IP enabled for remote communication and control of turnstiles over an Ethernet network
- Multiple operational modes including controlled passage, free passage and visitor
