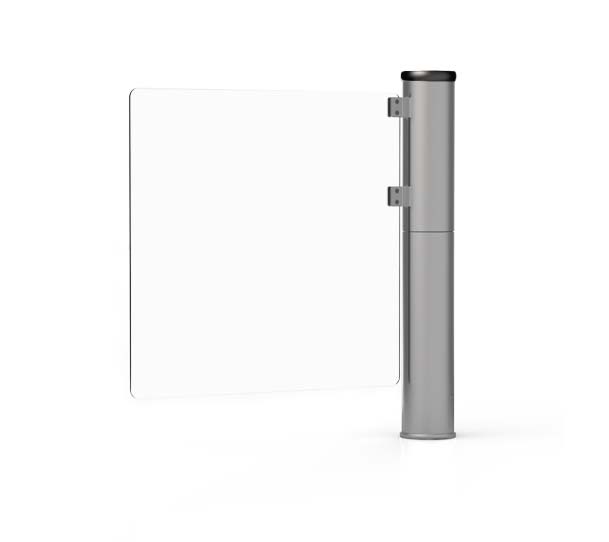

SW1000 Pedestrian Security Gate

The SW1000 is a beautiful motorized gate that matches perfectly with our waist-high and optical turnstiles to provide extra room for wheelchair and oversized cart passage.

The SW1000 allows for a clear 36” wide passage and when used in tandem can create a controlled 72” wide passage for those oversized deliveries. Each barrier is moved by a powerful brushless DC motor with closed loop control to monitor position every 1/1000 of a second, providing smooth, quiet and precise movement.

Connecting the SW1000 into your facility is quick and easy. The pedestrian gate integrates with virtually any access control or visitor management system or a simple push button. A dedicated fire system input is provided and an output is available when the gate is forced open without authorization.

Key Features:

• 36” opening width is standard
• 72” opening when used in tandem
• Field configurable for uni or bi-direction
• Brushless DC motor using closed loop position control
• Output contacts for alarm if gate is forced open
• Passage widths to meet most operational requirements
• Audible alarms notify nearby staff of an intrusion attempt
• Compliments the SU5000 optical turnstile
• Smooth and precise operation
• Easy configuration and implementation
